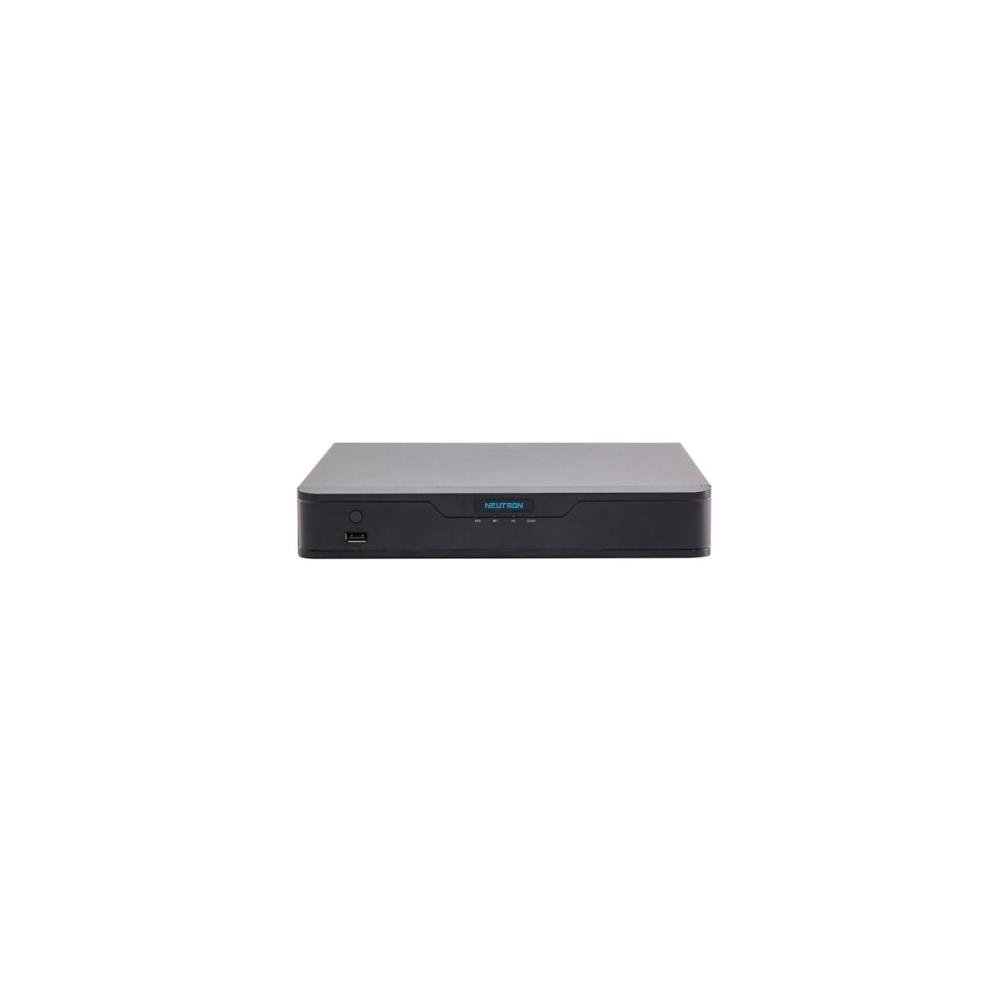

Neutron XVR301-04G 4 Kanal 5mp Destekli H.265+ 1 Sata XVR Kayıt Cihazı

ModelXVR301-04G
Video/Audio InputAnalog Video Input4-ch, BNC
IP Video Input2-ch(only IP up to 6ch), each channel up to 4MP
Supported Analog Camera TypesSupport AHD input: 5MP@20fps(The first channel)
5MP@12fps
4MP@30fps(The first channel)
4MP@15fps
1080P@30fps
720P@60fps
Support TVI input: 5MP@20fps(The first channel)
5MP@12fps
4MP@30fps(The first channel)
4MP@15fps
1080P@30fps
720P@60fps
Support CVI input: 5MP@20fps(The first channel)
4MP@30fps(The first channel)
4MP@15fps
1080P@30fps
720P@30fps
Support CVBS input
Audio Input1-ch, RCAVideo/Audio OutputVGA Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzHDMI Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzAudio Output1-ch, RCASynchronous Playback4-ch
Two-way Audio1-ch, RCANetworkIncoming Bandwidth24Mbps
Outgoing Bandwidth48Mbps
Remote Users128ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoEEncodingRecording Resolution5MP Lite/4MP Lite /1080P/720P/960H/D1/CIFRecording
Frame RateMain stream: 5MP Lite@12fps
4MP Lite@15fps
1080P Lite@15fps
1080P@15fps
720P@30fps
Sub stream: D1@30fps(Max)
Hard DiskSATA1 SATA interfaceCapacityUp to 10TB for each HDDExternal InterfaceNetwork Interface1 RJ45 10M/100M self-adaptive Ethernet InterfaceUSB InterfaceRear panel: 2 x USB2.0GeneralPower Supply12V DC
Power Consumption: ≤ 8 W( without HDD )Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)Dimensions(W×D×H)260mm ×240mm× 46mm (10.2" × 9.4"×1.8")Weight ( without HDD )≤1.1 Kg ( 2.42lb )
